- Passenger cars
- Light Commercial Vehicles
- Supercars
Software Add-On:
- IDC5 TRUCK $1600.00
- IDC5 OHW $1600.00
- IDC5 BIKE $750.00
- IDC5 MARINE $1500.00

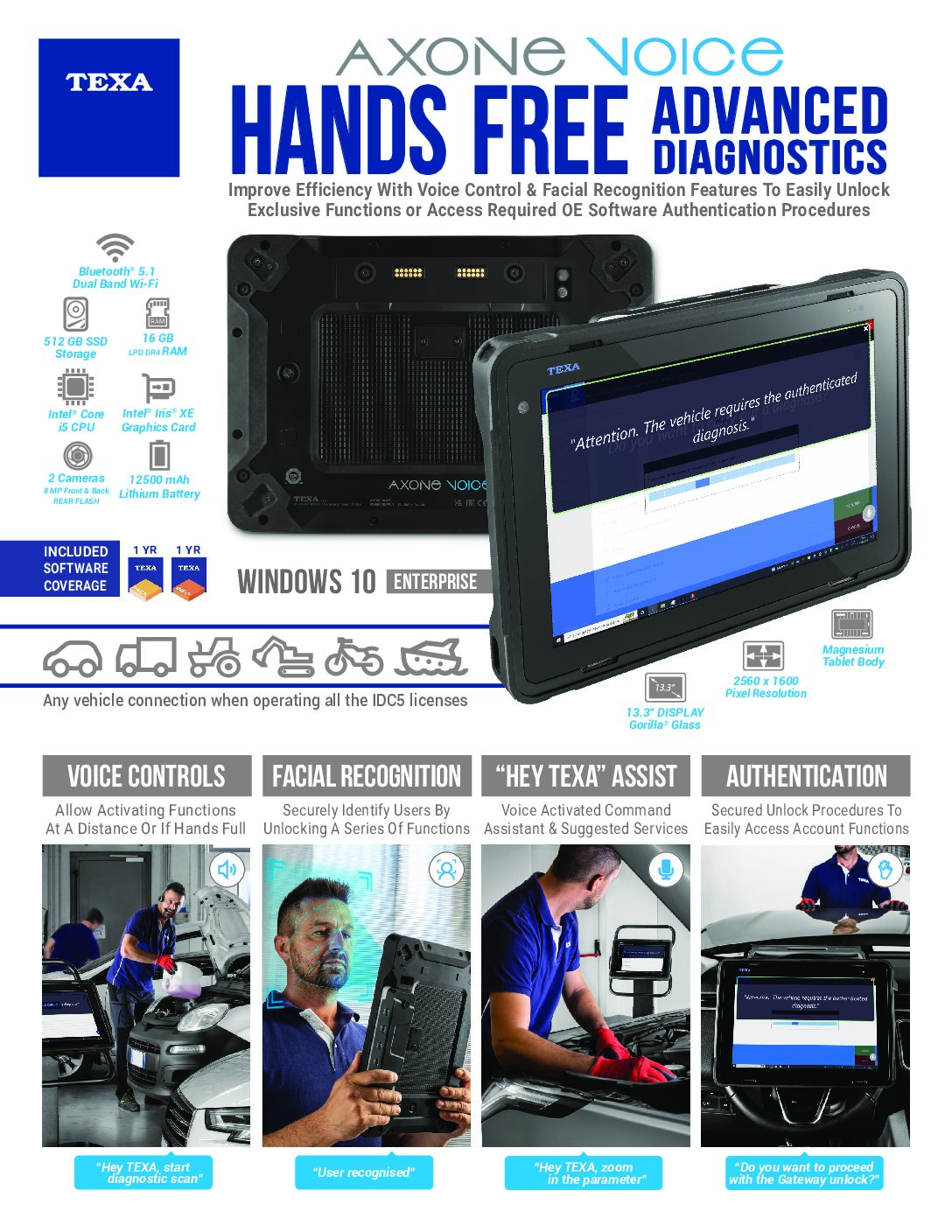

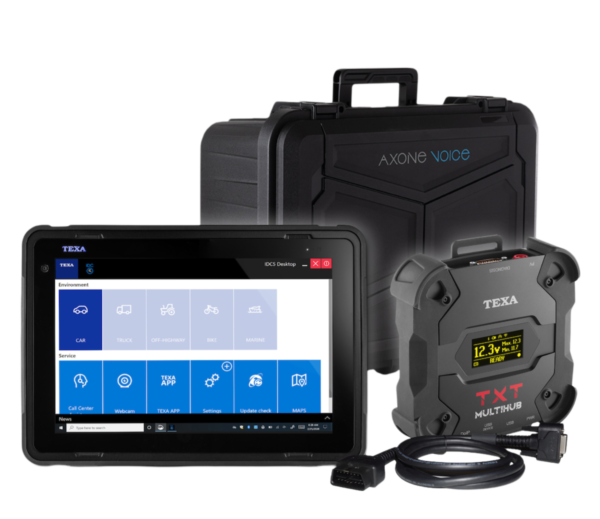

The AXONE VOICE was designed by the TEXA engineers to become the most powerful and high-performing diagnostic display on the market.
It is equipped with a 13.3” capacitive screen with 2560×1600 resolution, protected by a robust Gorilla Glass. On its insides, the Windows 10 Enterprise operating system is powered by an Intel® Core i5 processor with 16 GB RAM and 512 GB storage.
The connectivity, another essential element for a display unit like AXONE VOICE, is possible thanks to an advanced dual-channel Wi-Fi system and to a Bluetooth® 5.1 module. Furthermore, the tool has two 8 MP cameras, useful to obtain detailed customer reports or send technical photos to the assistance service.

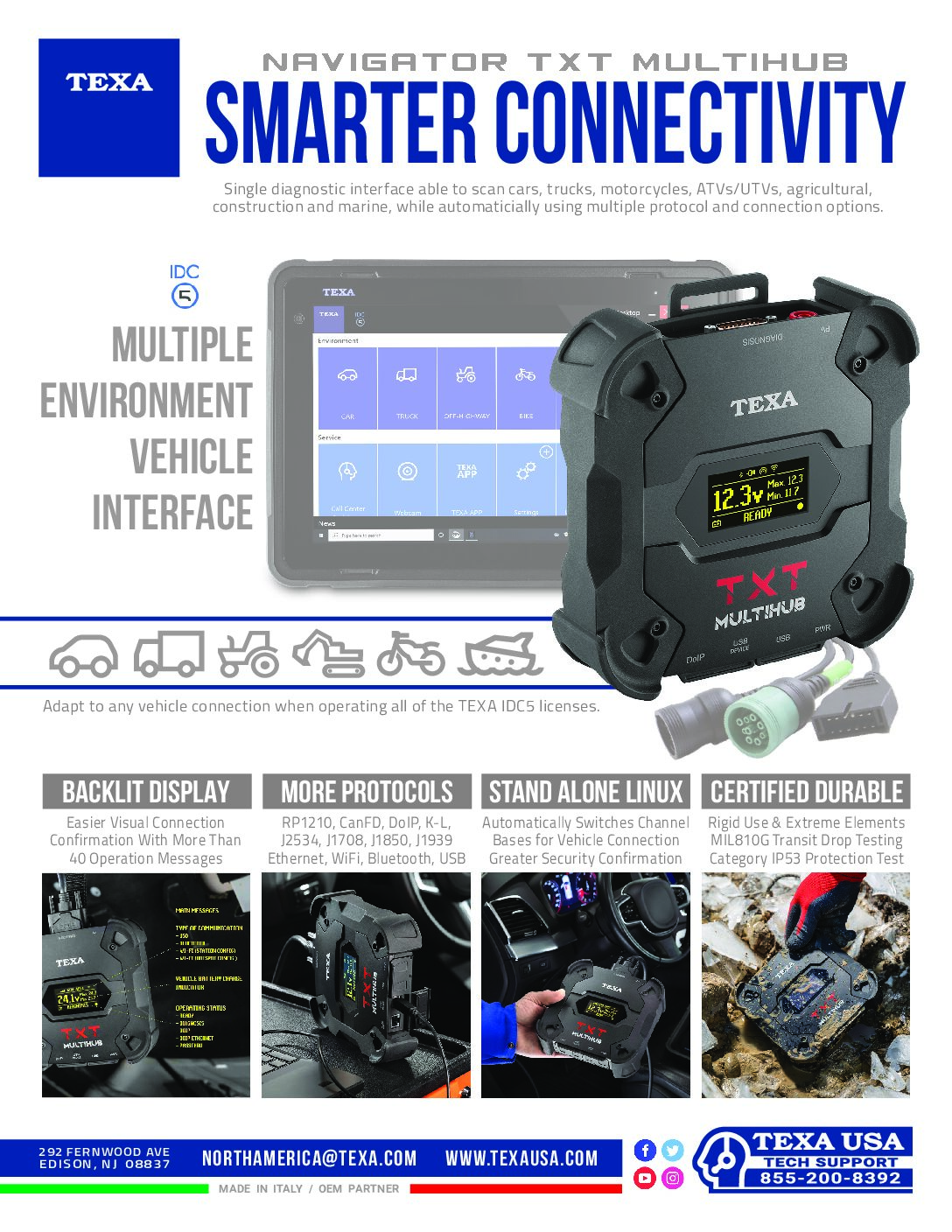

- communication mode with the display unit
- charging voltage of the battery in the vehicle it is connected to
- operating status that can be standard diagnosis, DoIP Wi-Fi, DoIP Ethernet, CAN-FD, Pass-Thru.
Battery voltage at a glance
- CARS
- COMMERCIAL VEHICLES
- AGRICULTURAL & CONSTRUCTION EQUIPMENT
- POWERSPORTS
- BOATS & PWCs
Wi-Fi module for the diagnostic operations that use standard CAN and DoIP
Network cable (Ethernet) reserved for DoIP operations (ISO 13400)
USB socket for all types of diagnosis, including the Pass-Thru (SAE J2534-1 and SAE J2534-2)
Bluetooth module for conventional diagnoses
